Product Overview
Industrial extrusion lines are used to convert polymer compounds into continuous products with defined cross-sectional shapes. Depending on the material and end-product requirements, a production line may include a feeding system, extruder, extrusion die, temperature control system, downstream handling equipment, and cutting or winding units.
Our extrusion machinery portfolio covers two main product categories: silicone rubber extrusion lines for continuous rubber profile production and PVC profile extrusion lines for manufacturing rigid or flexible plastic profiles.
Each line is configured according to the material formulation, product geometry, required output, dimensional requirements, and downstream processing method. Extruder specifications, tooling, temperature control, line speed, and auxiliary equipment are determined during technical review.
These systems are intended for manufacturers of rubber sealing products, plastic profiles, electrical accessories, and other extruded components. The appropriate configuration depends on the customer's production requirements and the characteristics of the material being processed.

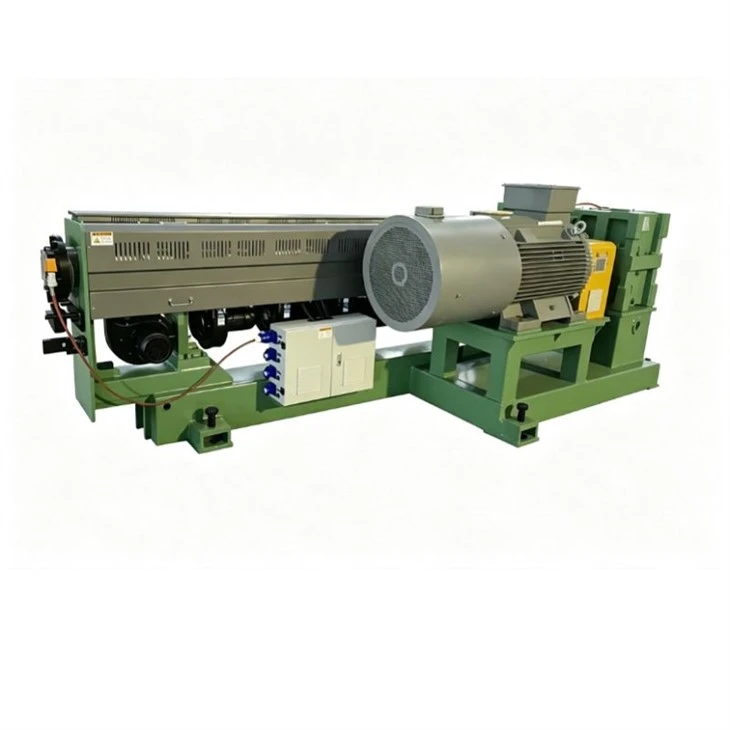

Silicone Rubber Extrusion Line
Product Overview
A silicone rubber extrusion line processes uncured silicone rubber compounds through an extrusion die to produce continuous profiles, tubes, seals, and other products with a defined cross-section.
The production line can be configured with suitable feeding, extrusion, curing, cooling, and take-up equipment. The curing method and downstream layout depend on the silicone compound, product dimensions, required production speed, and final application.
Key Features and Configuration Options
Extruder and Screw Configuration: Screw geometry, compression characteristics, and drive specifications are selected according to the silicone compound and required output.
Extrusion Die: Die geometry is designed around the target product cross-section, dimensions, and material flow characteristics.

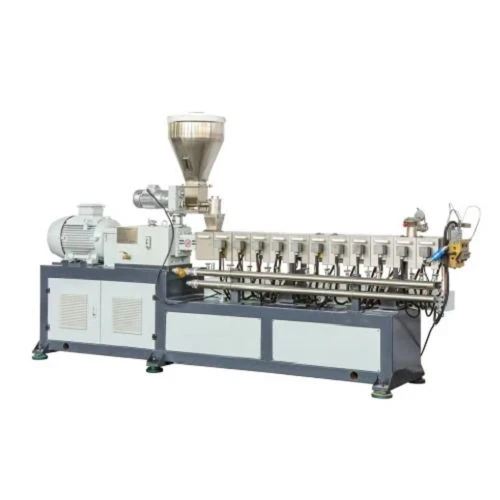

Curing System: A suitable curing configuration, such as a hot-air vulcanization system or another compatible curing method, can be selected according to the compound and process requirements.
Temperature Control: Heating and temperature monitoring arrangements are configured for the extrusion and curing processes.
Downstream Handling: Cooling, pulling, cutting, and winding equipment can be selected according to the product shape and handling requirements.
Line Control: Drive coordination and operating controls can be configured to suit the selected production line and required degree of automation.

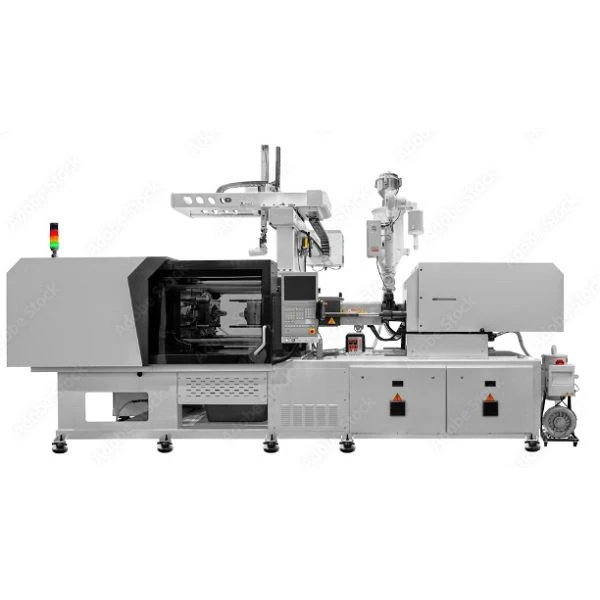

PVC Profile Extrusion Line
Product Overview
A PVC profile extrusion line converts PVC compounds into continuous profiles through controlled plasticization, die forming, calibration, cooling, and haul-off. Cutting equipment is used to produce finished lengths according to the required dimensions.
The line configuration depends on whether the application uses rigid PVC, plasticized PVC, or a compatible wood-plastic composite (WPC) compound. Screw design, extruder type, die configuration, calibration equipment, and downstream handling must be selected for the specific material and product geometry.
Key Features and Configuration Options
Extruder Selection: Single-screw or twin-screw configurations are selected according to the material formulation, processing requirements, and intended output.
Screw and Barrel: Material selection and screw geometry are determined by the compound characteristics and expected processing conditions.
Profile Die: The die is designed for the target cross-section and required material distribution.
Vacuum Calibration: Where required, a vacuum calibration table supports profile shaping and dimensional control during cooling.
Haul-Off System: Pulling speed and contact arrangements are selected to suit the profile dimensions and production requirements.
Cutting Equipment: Synchronized saws or other suitable cutting systems can be configured for the required finished length.
Control System: Temperature, screw speed, haul-off speed, and cutting operations can be coordinated according to the selected automation configuration.
Technical Specifications
|
Parameter |
Silicone Rubber Extrusion Line |
PVC Profile Extrusion Line |
|
Processed Material |
HTV Silicone Rubber (HCR), Fluorosilicone (Specific grades to be confirmed) |
Rigid PVC, Plasticized PVC, WPC compounds |
|
Extruder Type |
Single-screw (customized compounding match) |
Single-screw or Conical Twin-screw |
|
Screw Diameter (D) |
Φ 45 mm - Φ 120 mm (Model dependent) |
Φ 50 mm - Φ 90 mm (Model dependent) |
|
Screw L/D Ratio |
24:1 to 30:1 |
25:1 to 38:1 |
|
Drive Power |
15 kW - 90 kW (Configured per output) |
37 kW - 160 kW (Configured per output) |
|
Output Capacity |
50 kg/h - 350 kg/h |
150 kg/h - 500 kg/h |
|
Die Configuration |
Engineered per product cross-section |
Engineered per profile geometry & wall thickness |
|
Temperature Control |
Multi-zone barrel heating + Curing system zones |
Multi-zone barrel heating + Die head zones |
|
Downstream Equipment |
Vulcanization, cooling, pulling, cutting, winding |
Vacuum calibration, cooling, haul-off, cutting |
|
Line Speed Range |
1 m/min - 30 m/min (Curing-limited) |
3 m/min - 15 m/min |
|
Electrical Supply |
380V / 415V, 50Hz / 60Hz, 3-Phase |
380V / 415V, 50Hz / 60Hz, 3-Phase |
|
Control System |
Siemens PLC + HMI (PROFINET / Modbus TCP) |
Siemens PLC + HMI (PROFINET / Modbus TCP) |
Manufacturing and Quality Control
Manufacturing and inspection requirements are executed against strict engineering standards and customer technical agreements. Quality control activities include:
Component Verification
Checking purchased and manufactured components against applicable engineering drawings and technical specifications.
Machining and Assembly Inspection
Inspecting critical dimensions, assembly interfaces, alignment, and mechanical fit of gearboxes and screws.
Electrical and Control Checks
Verifying electrical connections, PLC control functions, temperature monitoring, and configured safety devices.
Operational Testing
Checking machine movement, drive operation, heating functions, and control coordination.
Production Trial and Acceptance (FAT)
Conducting agreed factory acceptance tests using defined test conditions and acceptance criteria prior to shipment.
Documentation
Providing operating instructions, maintenance information, EPLAN electrical schematics, and inspection records according to the agreed delivery scope.
Customization and Configuration
Extrusion lines can be configured according to the target product, material, production process, and factory requirements. Available customization options include:
Feeding and Material Handling
Loss-in-weight gravimetric feeders or volumetric hopper loaders.
Extrusion System
Extruder type, screw and barrel metallurgy (nitrided or bimetallic), drive specification, and die design.
Temperature Management
Heating, cooling, and temperature monitoring arrangements suited to the process.
Downstream Equipment
Curing systems, vacuum calibration tables, stainless steel cooling tanks, haul-off units, cutters, and winders.
Co-Extrusion
Multi-extruder arrangements for compatible materials and products requiring multiple layers or dual-durometer zones.
Automation and Integration
Control interfaces and synchronization with compatible upstream or downstream equipment.
Installation, Operation, and Maintenance
Before ordering, buyers should confirm the production line layout, installed power, cooling requirements, compressed air requirements, and available factory space.
Installation and commissioning requirements depend on the machine configuration and the scope of supply. Quotations clearly identify included services, such as installation guidance, operator training, commissioning support, and spare parts availability.
For maintenance planning, buyers receive recommended inspection schedules, lubrication requirements, wear-part replacement procedures, and replacement component availability guidelines. A final utility schedule and layout drawing are prepared specifically for the selected configuration.
